Omnitron Systems 8240-1 Converter 1-Module Power Chassis

Name: Omnitron Systems 8240-1 Converter 1-Module Power Chassis
Brand: Omnitron Systems
Price: 69.99 USD
Availability: InStock

$69.99

Sale Sold out

Only 2 units left

Quantity

Brand New

Features

1-Module Power Chassis with external AC adapter power supply or direct DC power
DC input supports 20 to 60VDC via three pin terminal connector with isolated ground
NEBS Level 3 Compliant
Houses all single-slot models of hot-swappable iConverter media converter and switch modules
Models 8241-X and 8243-X support Dying Gasp (Power Loss Trap) when used with a Network Interface Device
Wall-mount or tabletop options for flexible installations
DIN-rail and 19” rack mounting options available
Management is available with the addition of a Network Interface Device (NID) in the chassis
SNMP management via NetOutlook® provides real-time port and module status information, remote parameter configuration and trap notification
Commercial (0 to +50° C) and wide (-40 to +60° C) temperature ranges
Made in the USA
Lifetime Warranty and free 24/7 Technical Support

Description

The 1-Module Power Chassis is designed for network edge or Customer Premises deployments where low-profile, low cost and flexible upgrades are important. The compact 1-Module iConverter Power Chassis supports a single iConverter module and is powered by an external AC power adapter or external DC power source (20 to 60VDC).

Any iConverter single-slot module can be installed in the 1-Module Power Chassis and function as a standalone unit. The unit can be wall or DIN-rail mounted with optional mounting kits. Utilizing the iConverter 19” rack-mount shelf, up to four chassis can be securely mounted side-by-side.

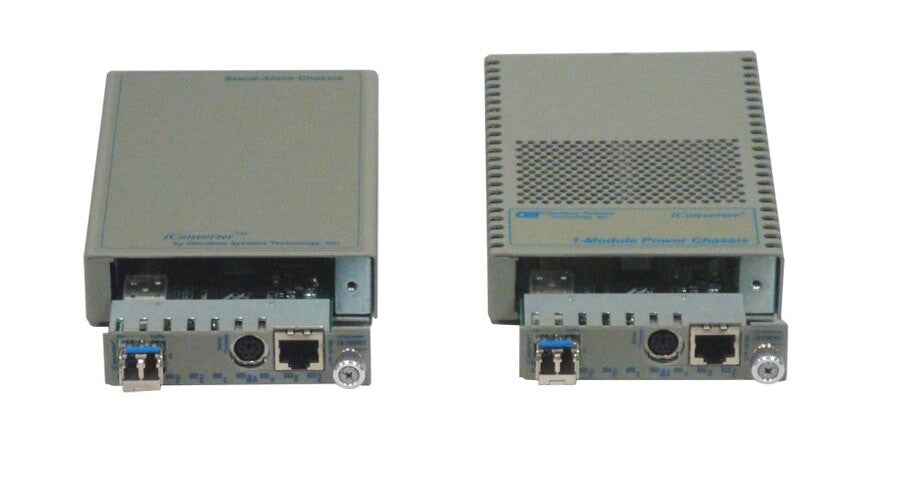

The chassis supports managed edge demarcation applications when an iConverter Network Interface Device (NID) plug-in module with integrated management (such as the 10/100M2 shown in the photos above) is installed in the chassis. Models with “Dying Gasp” support allow NIDs to send a power failure alarm in the event of power loss.

Specifications

Description	1-Module AC	1-Module AC	1-Module AC	1-Module AC	1-Module 48VDC*
Model Number Standard: Dying Gasp:	8240-1 (3.3 watt)	8240-2 (3.3 watt)	8242-1	8242-2	8242-9
Model Number Standard: Dying Gasp:	8241-1 (5 watt)	8241-2 (5 watt)	8243-1	8243-2	8243-9
Module Capacity	1
Regulatory Compliances	UL, CE, FCC Class A, NEBS Level 3, RoHS, WEEE, REACH
Power Supply Type	AC/DC Power Supply with US Plug	AC/DC Power Supply with IEC 320 Socket	AC/DC Power Supply with US Power Cord	AC/DC Power Supply with IEC 320 Socket	Internal DC Supply 3-Pin Terminal
Input Power Requirements (typical)	100 to 240VAC, 50 / 60Hz 0.13A @ 120VAC	100 to 240VAC, 50 / 60Hz 0.19A @ 120VAC	100 to 240VAC, 50 / 60Hz 1.0A @ 120VAC	100 to 240VAC 50 / 60Hz 1.0A @ 120VAC	20 to 60VDC 0.6A Max
Output Power	3.3 watts / 5.0 watts 1A @ 3.3VDC / 1.5A @ 3.3VDC	3.3 watts / 5.0 watts 1A @ 3.3VDC / 1.5A @ 3.3VDC	8.3 watts 2.5A @ 3.3VDC	8.3 watts 2.5A @ 3.3VDC	8.3 watts 2.5A @ 3.3VDC
Input Power Connector	8 to 16 VDC (2.5mm Barrel Connector)	8 to 16 VDC (2.5mm Barrel Connector)	20 to 60 VDC* (2.1mm Barrel Connector)	20 to 60VDC* (2.1mm Barrel Connector)	20 to 60 VDC* (3-Pin Terminal Isolated)
Dimensions W x D x H	3.8” x 5.5” x 1.0” (96.52 mm x 139.7 mm x 25.4 mm)		3.8” x 6.0” x 1.0” (96.52 mm x 152.4 mm x 25.4 mm)
Weight	1.5 lbs. (0.68 kg)
Temperature	Commercial: 0 to 50°C Wide: -40 to 60°C Extended: -40 to 75°C - 8.3 watt models only Storage: -40 to 80°C
Humidity	5 to 95% (non-condensing)
Altitude	-100m to 4,000m
MTBF (hrs)	250,000	100,000	260,000	260,000	2,700,000
Warranty	Lifetime warranty with 24/7/365 free Technical Support
