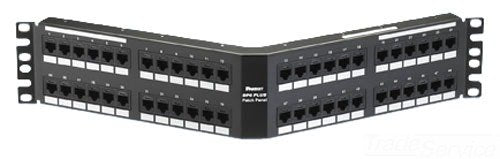

Panduit 48 Port Cat6 Angled Network Patch Panel

Used

In original box, used for few months guarantee to pass 10G speed

1 Year Warranty

Technical Specifications

The Panduit DPA48688TGY is a 48-port Cat 6 angled punchdown patch panel designed for 2RU rack mounting. It supports up to 250 MHz bandwidth and is compliant with TIA/EIA-568-C.2 standards. The panel features a 45-degree angled design for improved cable management and accessibility. Constructed with a robust steel frame and high-impact thermoplastic, it ensures durability in demanding environments. The termination type is 110-style insulation displacement contact (IDC) connectors, and it accommodates 22-26 AWG solid conductors.

Key Features

• Angled design for enhanced cable routing and reduced bend radius stress
• High-density 48-port configuration in a 2RU form factor, optimizing rack space utilization
• Tool-less snap-in modules for quick and efficient installation and maintenance
• Integrated cable management with built-in strain relief and labeling fields for organization
• Superior transmission performance meeting Cat 6 specifications for next-generation networks

Industry Applications

This patch panel is ideal for enterprise data centers, telecommunications closets, and office network infrastructures. Its high port density and angled design make it suitable for environments requiring efficient space management and easy access for frequent moves, adds, and changes. The product supports Gigabit Ethernet and other high-speed applications, ensuring reliable performance in commercial and institutional settings where robust and scalable connectivity solutions are essential.
